Slant Bed CNC Lathes

TCK50 Precision Slant Bed CNC Lathe

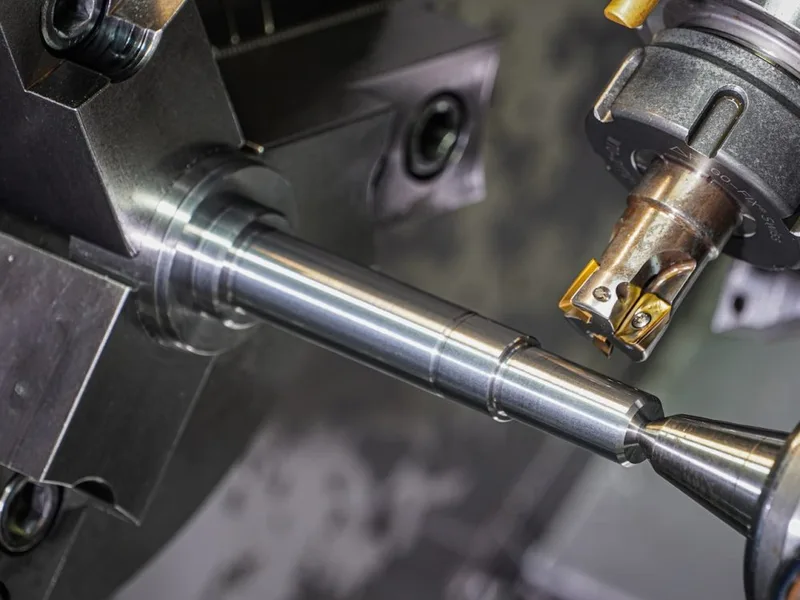

45° Monobloc Slant Bed Turning Center (Max Swing 500 mm, 8T Turret)

The TCK50 features an integral 45° slant bed structure delivering exceptional dynamic rigidity and ergonomic chip drop. Equipped with a high-torque spindle, Taiwan hydraulic chuck, and 8-station hydraulic tool turret for continuous production.

Primary Engineering Parameters

Max Swing Over Bed: Ø500 mm
Max Turning Diameter: Ø360 mm
Max Turning Length: 500 mm
Spindle Bore: Ø66 mm (Bar capacity Ø52 mm)
Spindle Speed: 4,000 RPM
Tool Turret: 8-Station Hydraulic (12T Option)
Controller Options:
FANUC 0i-TF Plus SIEMENS SINUMERIK 828D GSK 980TDi / 980TDc SYNTEC 22TA
Request Factory Quotation Email Technical Team

TCK50 Precision Slant Bed CNC Lathe - Complete Engineering Specifications

DIN / ISO 230-2 Standard
Bed Inclination Angle 45° Monobloc Meehanite Casting
Max Swing Over Bed Ø500 mm
Max Swing Over Carriage Ø300 mm
Max Machining Diameter (Shaft/Disk) Ø210 / Ø360 mm
Max Machining Length 500 mm
Spindle Nose Type A2-6
Through-Hole of Spindle Ø66 mm
Max Bar Work Capacity Ø52 mm
Spindle Speed Range 50 - 4,000 RPM
Spindle Motor Power 7.5 / 11 kW
Chuck Size 8-inch 3-Jaw Solid Hydraulic Chuck
X Axis Travel 210 mm
Z Axis Travel 520 mm
Rapid Traverse X/Z 24 / 24 m/min
Turret Type & Stations 8-Station Hydraulic Turret (Optional 12T)
Turning Tool Shank Size 25 × 25 mm
Boring Bar Diameter Ø32 / Ø40 mm
Tailstock Quill Diameter Ø75 mm
Tailstock Quill Taper & Travel MT#4 / 100 mm
Repeatability Accuracy (X/Z) 0.003 mm / 0.005 mm
Total Machine Weight 3,600 kg

Standard Factory Configuration

  • ✓ 45° monolithic cast iron slant bed
  • ✓ Taiwan 8-inch hydraulic chuck and cylinder
  • ✓ 8-station high-speed hydraulic turret
  • ✓ Hydraulic manual-position tailstock
  • ✓ Automatic chain chip conveyor & cart
  • ✓ Full machine enclosure with safety interlock

Optional Engineered Upgrades

  • + 12-station servo turret
  • + Live tooling with C-axis (BMT45/BMT55)
  • + Automatic bar feeder interface & feeder
  • + Parts catcher with conveyor belt
  • + Renishaw automatic tool presetter

Recommended Component Applications for TCK50 Precision Slant Bed CNC Lathe

Automotive drive shaft and gear blanks
Hydraulic fittings and valve spools
Bearing inner and outer rings
Oil and gas pipe couplings
Typical Response Time: < 12 Hours

Request a Direct Factory Quotation

Speak directly with our senior application engineers. Receive detailed price quotations, technical layout drawings, and cycle-time estimations.

Data protected & confidential xiuc32860@gmail.com
