VMC650 Compact Machining Center CNC machine tool by Lunan Machine

±0.005mm

Positioning Accuracy

Renishaw

Laser Calibrated

CE & ISO 9001

Global Export Ready

Vertical Machining Centers

VMC650 Compact Machining Center

Name: VMC650 Compact Machining Center
Brand: Lunan Machine
Availability: InStock

Compact High-Speed CNC Machining Center (650×400×500 mm Travel)

Engineered for small-to-medium precision parts, precision hardware, electronics tooling, and compact mold manufacturing. Small footprint, high acceleration, and economical investment with uncompromising structural rigidity.

Primary Engineering Parameters

X/Y/Z Travel: 650 × 400 × 500 mm

Table Size: 800 × 400 mm

Spindle Taper: BT40 (8,000 / 10,000 RPM)

Spindle Power: 5.5 / 7.5 kW

Tool Capacity: 16T Umbrella / 24T Arm

Rapid Traverse: 30 / 30 / 24 m/min

Controller Options:

FANUC 0i-MF Plus SIEMENS 828D GSK 25i SYNTEC 22MA

Request Factory Quotation Email Technical Team

VMC650 Compact Machining Center - Complete Engineering Specifications

DIN / ISO 230-2 Standard

Worktable Dimensions	800 × 400 mm
Max Worktable Load	400 kg
X Axis Travel	650 mm
Y Axis Travel	400 mm
Z Axis Travel	500 mm
Spindle Nose to Table Surface	110 - 610 mm
Spindle Taper	BT40
Spindle Speed	8,000 / 10,000 RPM
Main Motor Power	5.5 / 7.5 kW
Positioning Accuracy	±0.005 mm
Repeatability	±0.003 mm
Machine Weight	3,800 kg

Standard Factory Configuration

✓ Rigid Meehanite cast column
✓ Hiwin/PMI precision linear rails
✓ Central automatic lubrication
✓ Cabinet heat exchanger

Optional Engineered Upgrades

+ 24-tool arm type ATC
+ Oil chiller for spindle
+ 4th axis rotary table
+ Automatic screw chip auger

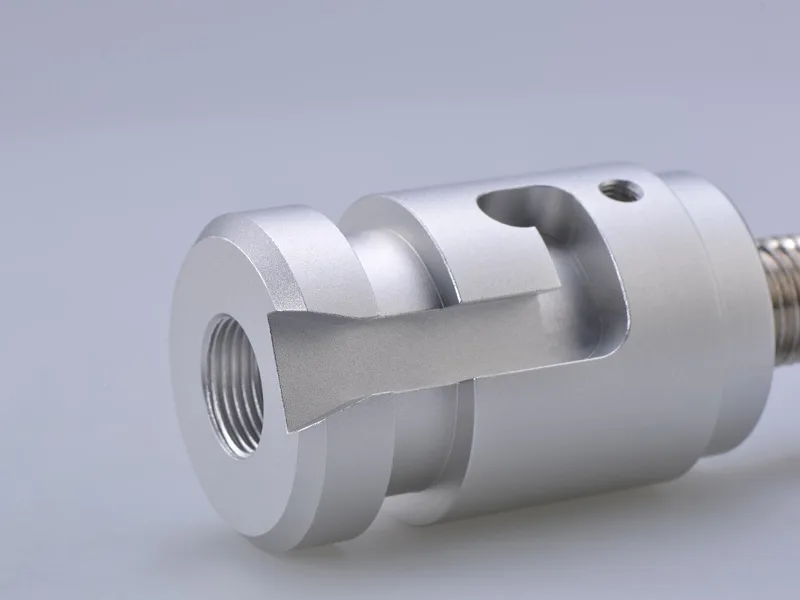

Recommended Component Applications for VMC650 Compact Machining Center

Mobile phone fixtures and consumer electronics

Small aluminum die casting molds

Pneumatic valve bodies

Precision brass bushings

Typical Response Time: < 12 Hours

Request a Direct Factory Quotation

Speak directly with our senior application engineers. Receive detailed price quotations, technical layout drawings, and cycle-time estimations.
